Cell sizes   length    width    height     weight

40 Ah          115         47        183          1.6kg

60 Ah          114         61         203          2.3kg

100 Ah        143        67         218           3.3kg

100 B Ah    179        62          218           3.6kg

130 Ah        360        55          177          5.2kg

160 A Ah    182        70.5        277          5.3kg

160 B Ah    209        65          278          5.7kg

200 Ah        361       55.2       256           7.9kg

260 Ah        361       55.5        283           8.8kg

300 Ah        362       55.5        306          9.7kg

400 Ah        460        65          285         13.5kg

Winston lithium Batteries LiFeYP04                          $1.86/Ah

Used for

     1) Electric Vehicle Traction

     2) Solar Systems

     3) Start Batteries

     4) Auxiliary Batteries

     5) anywhere Electrical power needs to be stored or used.



We sell all sizes and attempt to keep in stock 40Ah, 60Ah, 100Ah A & B, 130Ah, 160Ah A & B, 200Ah, 260Ah, 300Ah, 400Ah. Other sizes are special order.


How to calculate a pack price.
System voltage divided by 3.2v = No. of cells, then multiply by Ah cell size multiply by $1.86.
Example 12v /3.2v = 4 cells x 100Ah x $1.86 = $744

Cells can be made in series / parallel configurations to suit any pack voltage and amp hour.

Cells must be strapped to stop them swelling in normal use.

Max operating voltage range, 2.8v to 4.0v

Ideal operating voltage range, 3.15v (approx.70%DOD) to 3.5v (3.6-3.7 ok, but above 3.7v you will see more voltage separation between cells.

12v 40Ah.JPG

12v x 40Ah

Some example battery packs

TSWB 12v 60Ah.JPG

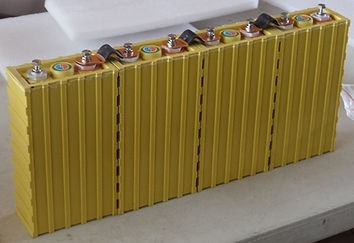

12v x 60Ah
